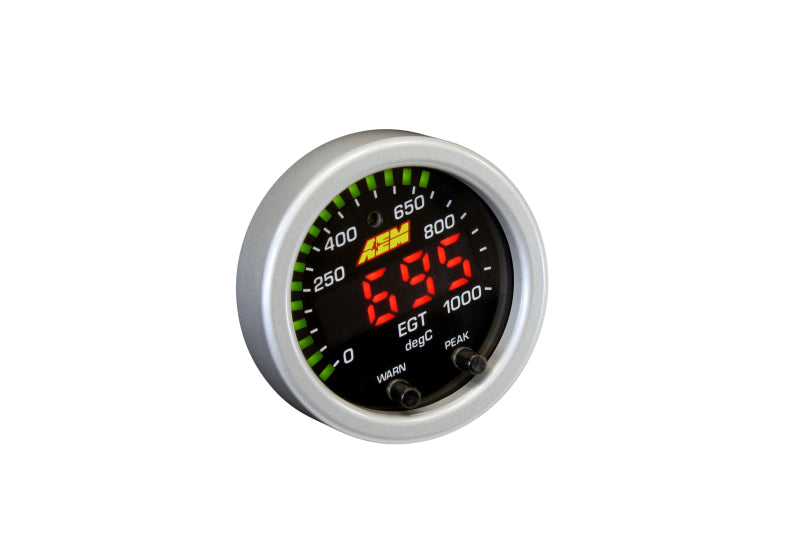

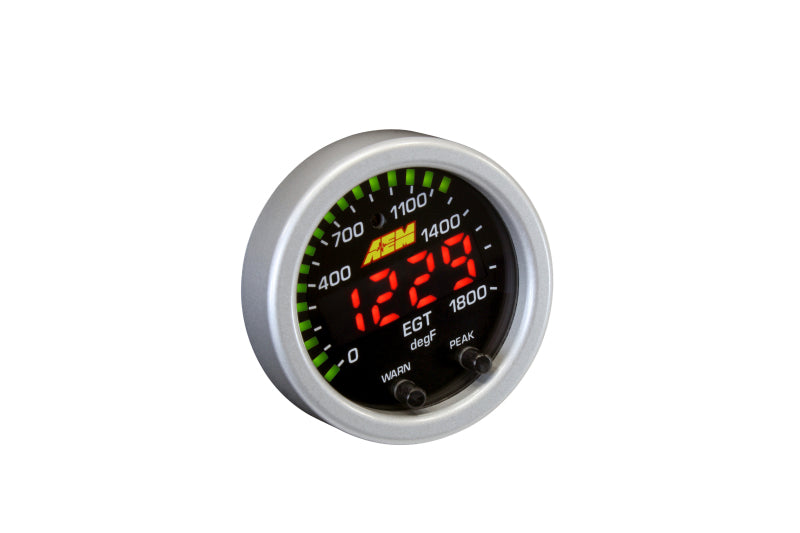

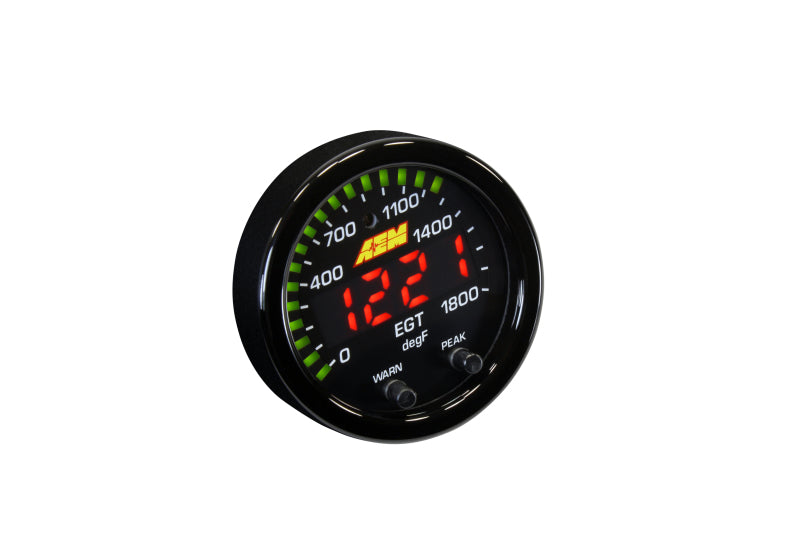

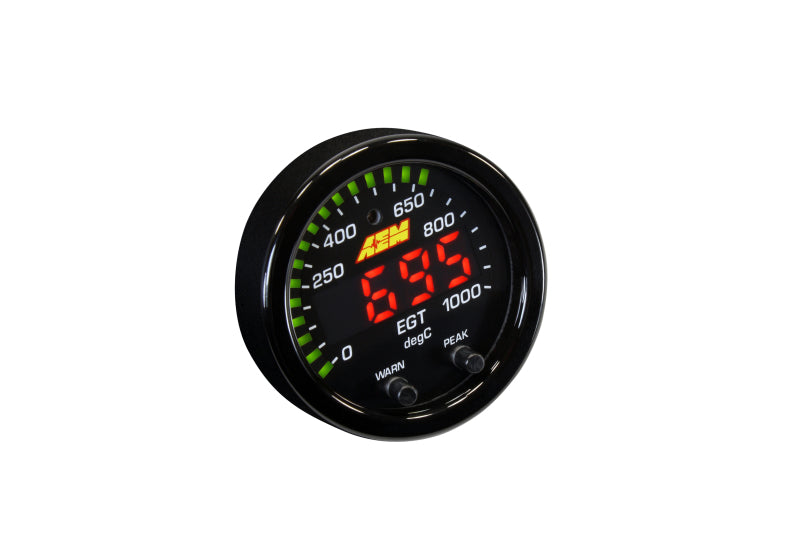

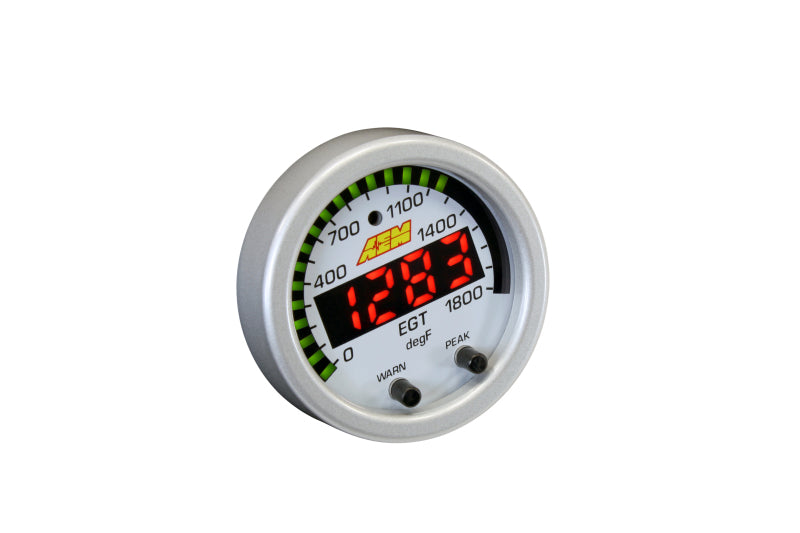

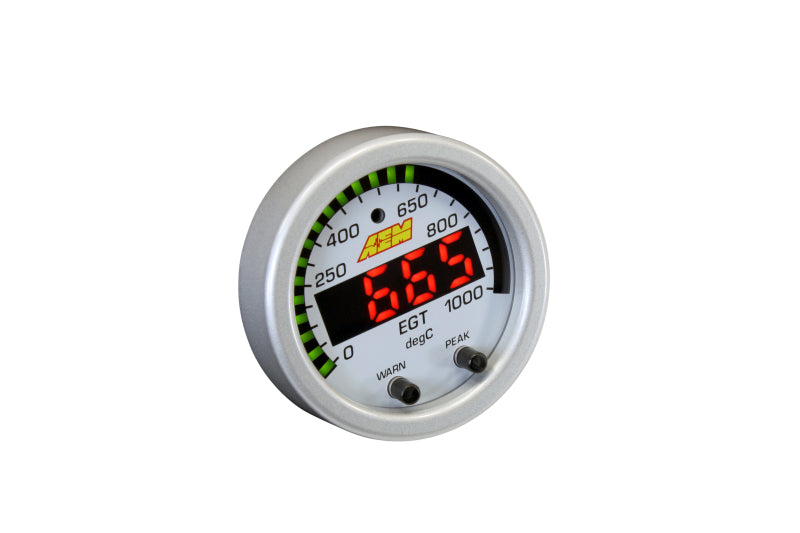

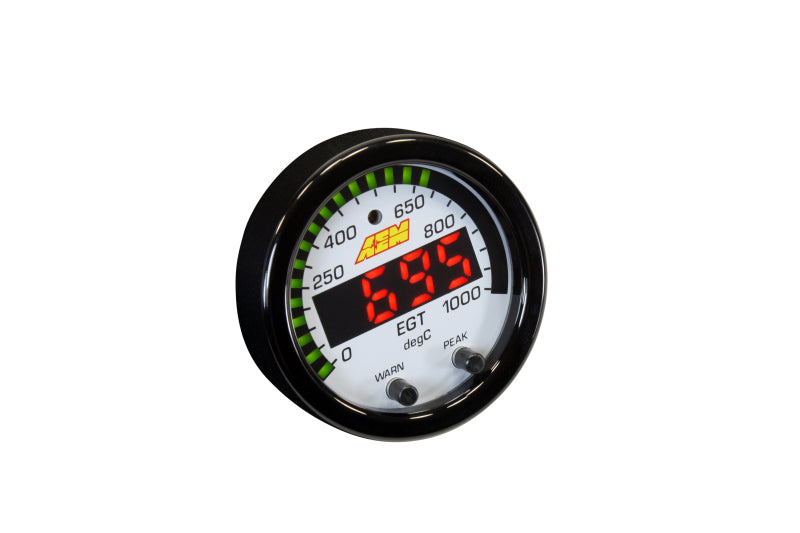

The AEM X-Series EGT Gauge Sensor Kit is designed to provide an ultra-accurate reading of exhaust gas temperature (EGT) up to 1000°C .
Ideal for modified or high-performance vehicles, this digital pressure gauge allows you to protect your engine and turbo against overheating during boost.
It incorporates the latest AEM technologies , with an enlarged central LED display , a scanning LED visual needle , and advanced programmability features , all in a 52mm format.

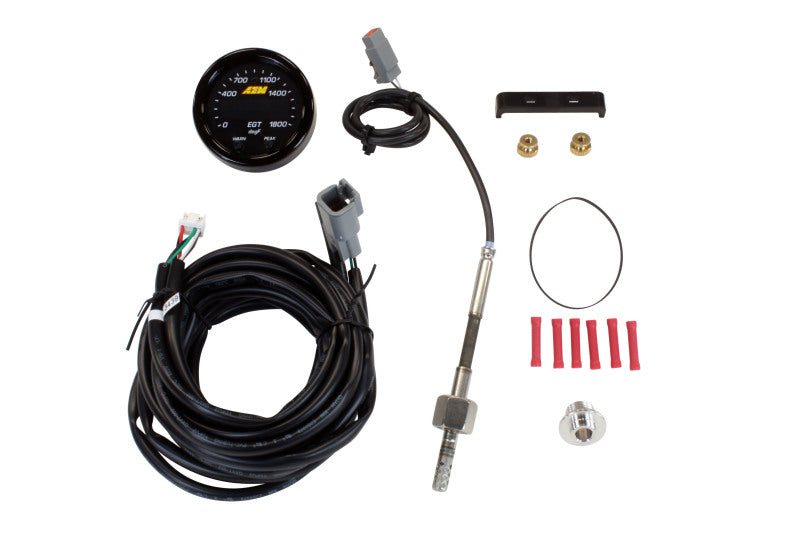

Kit contents:
-
AEM X-Series EGT 52mm Gauge
-
High precision K-type thermocouple probe
-
Complete wiring with locking connectors
-
Mounting bracket and screws
-
Black front + black ring (silver/white kit available as an option)
-
User Manual
Technical characteristics:
| Specification | Detail |
|---|---|
| Measuring range | 0 to 1800°F (≈ 0 to 1000°C) |
| Diameter | 52 mm (2-1/16") |
| Central display | Digital LED (87% larger than older models) |
| Secondary display | 24 peripheral green LEDs ("needle" type) |
| Units | °F or °C (user configurable) |
| Built-in functions | Peak/recall reading, configurable min/max thresholds |
| Auto-dimming | Built-in light sensor |
| Facility | Low depth (0.825”) – easy installation even in confined spaces |
Advanced Connectivity:
-
0–5V analog output ➤ compatible with ECU or data logger
-
AEMnet CAN-Bus protocol ➤ direct communication with:
-
AEM Infinity ECU
-
AEM Series 2 EMS
-
AEM AQ-1 Data Logger
-
Or any third-party CAN-Bus compatible EMS system
-
Ideal for:
-
Turbo petrol or diesel preparations
-
Turbine/valve overheating prevention
-
Integration into circuit project, drift, reprogramming
