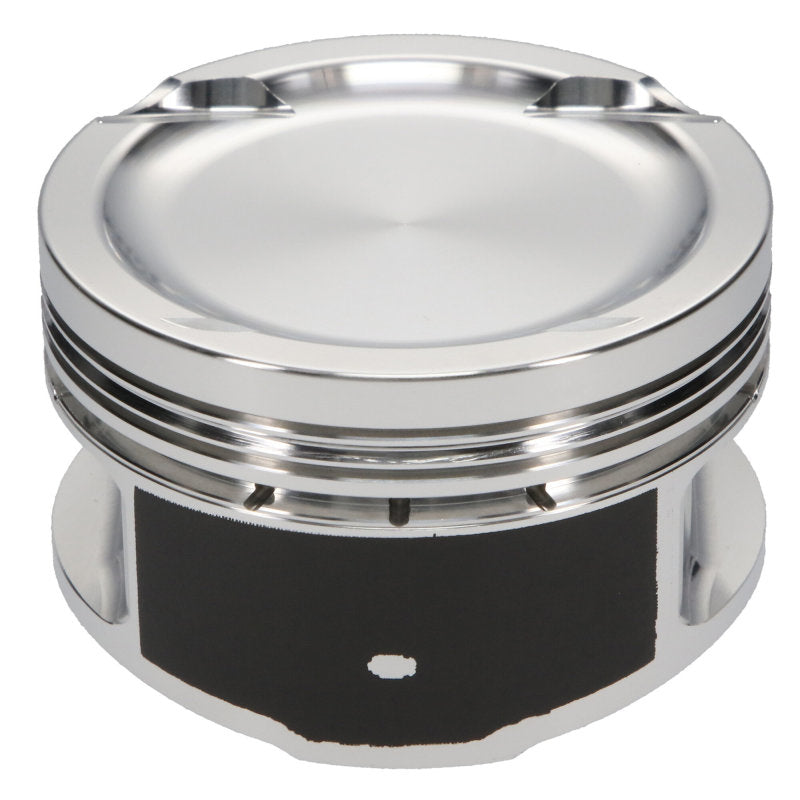

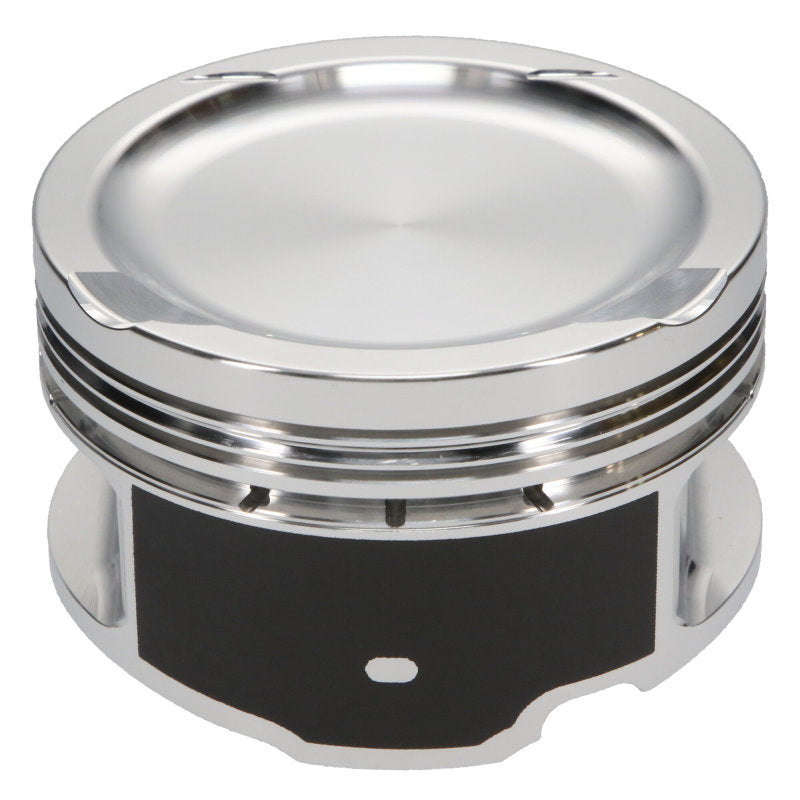

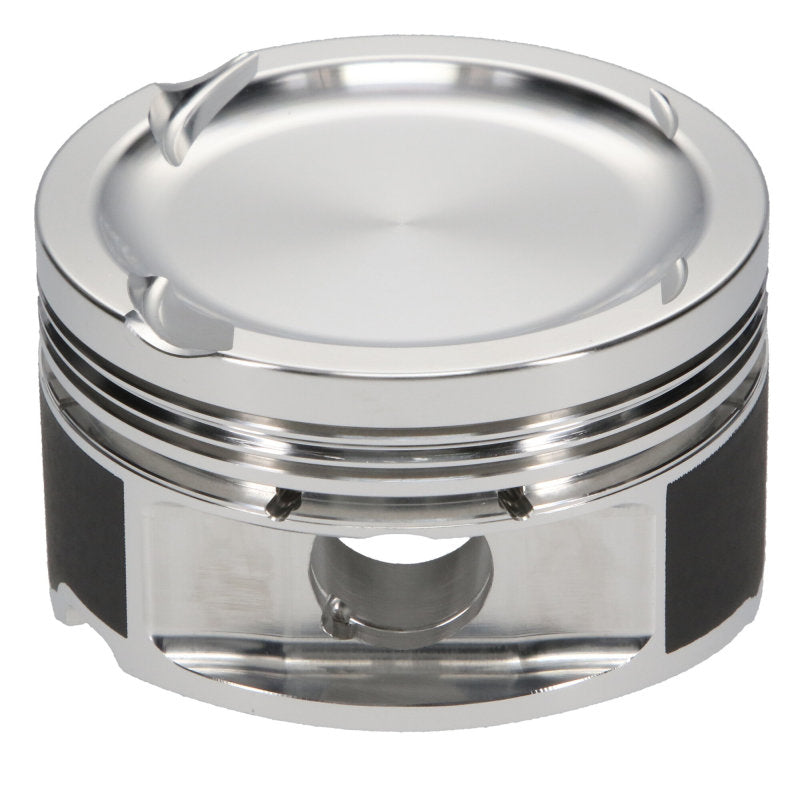

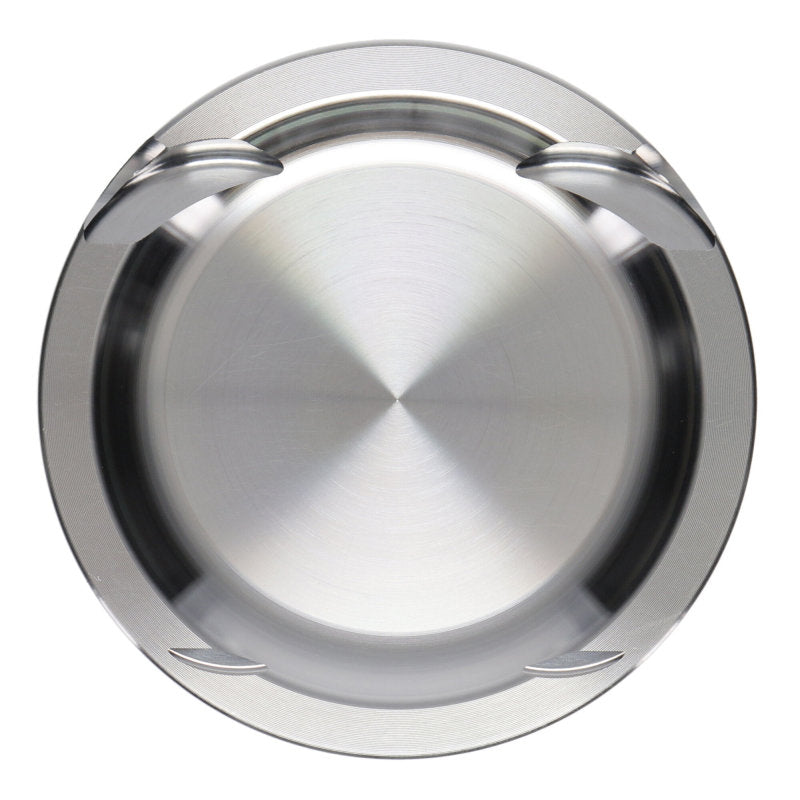

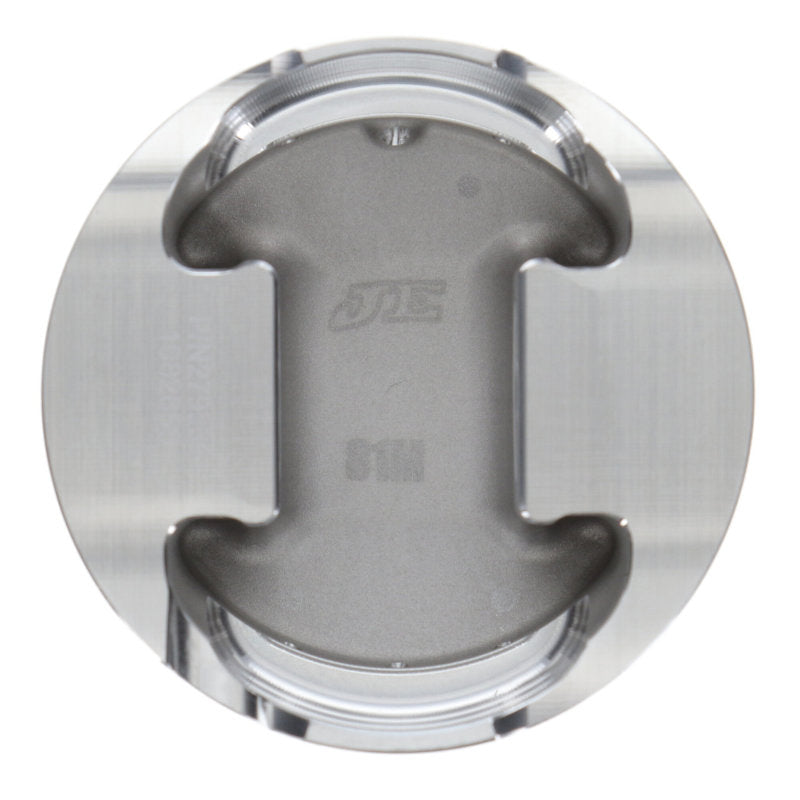

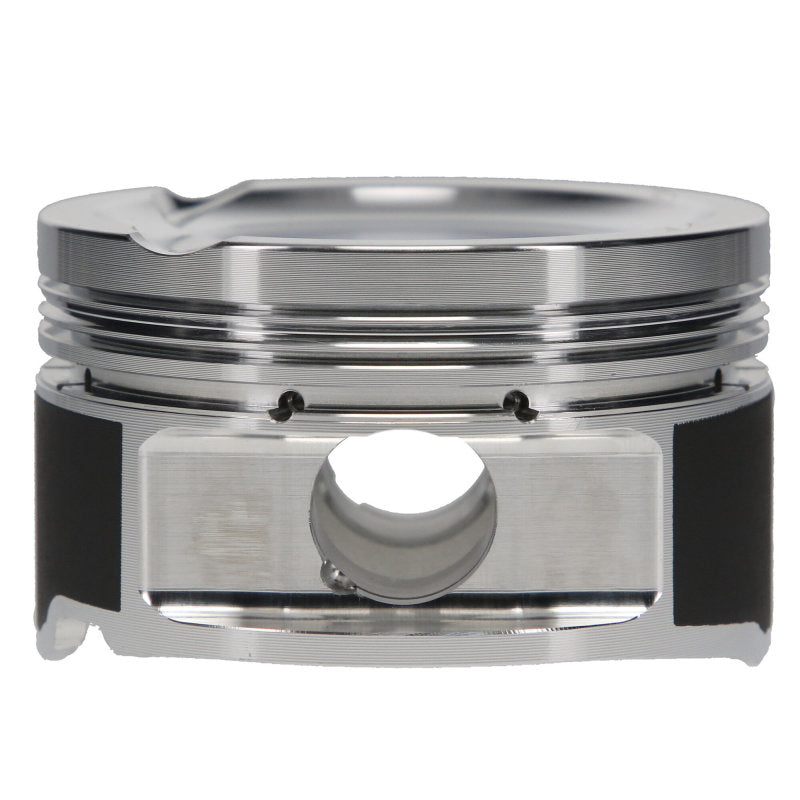

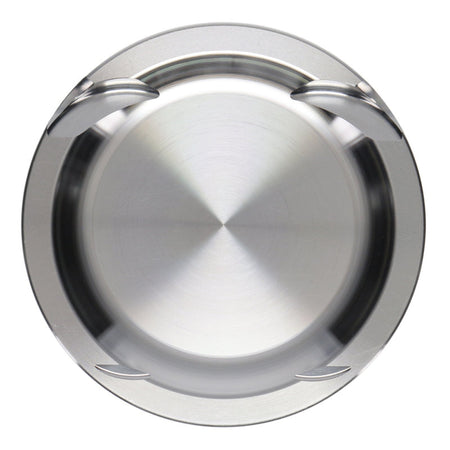

The JE Pistons 345814 piston kit is specifically designed for Volkswagen and Audi 2.0 TSI engines produced between 2013 and 2015 , equipped with a 22 mm piston pin. These engines belong to the EA888 Gen 2 generation.
Main features:
- Bore : 83.0 mm
- Compression Ratio : 9.6:1
- Dish Volume : -7.8 cc
- Material : Forged 2618 aluminum alloy
- Piston Type : Inverted Dome/Dish
- Skirt coating : Reduces friction and wear
- Segments included : Yes
- Axle diameter : 22 mm
- Number of pistons : 4
Compatibility:
This kit is compatible with vehicles equipped with the 2.0 TSI EA888 Gen 2 engine, including:
-
Audi :
- A3 8P 2.0 TFSI (2013-2015)
- A4 B8 2.0 TFSI (2013-2015)
- A5 B8 2.0 TFSI (2013-2015)
- Q3 8U 2.0 TFSI (2013-2015)
- Q5 2.0 TFSI (2013-2015)
-
Volkswagen :
- Golf Mk6 GTI (2013-2015)
- Passat B7 2.0 TSI (2013-2015)
- Tiguan 2.0 TSI (2013-2015)
Important notes:
- Incompatibility : These pistons are not compatible with EA888 Gen 1 (2008-2012) and EA888 Gen 3 (2015 and up) engines, which use 21mm and 23mm piston pins respectively.
- Professional Installation Recommended : To ensure optimum performance and increased durability, it is recommended that these pistons be installed by a qualified professional.
- Pre-Check : Before purchasing, ensure compatibility with your engine by checking your vehicle's engine code and specifications.
In summary, the JE Pistons 345814 kit offers a premium solution for owners of vehicles equipped with 2.0 TSI EA888 Gen 2 engines, wishing to improve the performance and reliability of their engine.
